| 配置描述 | |

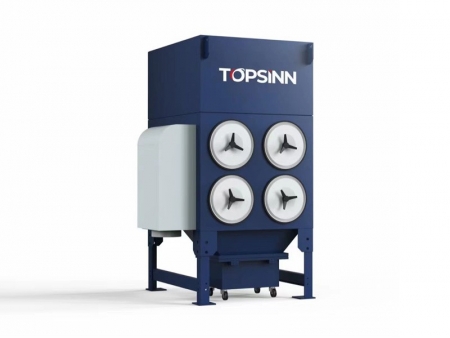

| TODC-4B/6B/8B | |
| 控制器 Controller | 自主开发（顶鑫智能环保) IndependentR&D |
| 人机显示 HMI | 液晶文本 LCD |
| 反吹单元 Backflush valve | 脉冲控制 Rulse control |
| 过滤单元 Filter | 高效过滤等级F9 High efficiency filtration |
| 外接协议 Protocol | 以太网 EtherCAT |
| 节能控制 Energy saving(optional) | 支持变频控制 Inverter control |
| TODc-4B | TODC-6B | TODC-8B | |
| 滤筒材质 Fiitercartridge material | 阻燃过滤等级F9 Flame retardant,F9 | 阻燃过滤等级F9 Flame retardant,F9 | 阻燃过滤等级F9 Flame retardant,F9 |
| 滤筒数量 Numberof Filter cartridge | 4 | 6 | 8 |
| 设计风量 Airvolume | 4000m³/h | 6000m³/h | 9000m³/h |
| 全压 Air pressure | 3000 | 3600 | 5000 |
| 过滤效率 Fitration efficiency | 99.99% | 99.99% | 99.99% |
| 过滤面积 Filtering area | 82㎡ | 120㎡ | 160㎡ |
| 风机 Entrifugal fan | 5.5KW电机 5.5KW | 7.5KW电机 7.5KW | 11KW电机 11KW |
| 尘桶 collector capacity | 45L | 50L | 90L |
| 电源要求 Power requirments | 3相4线，380v THREE-PHASE FOUR- WIRE,380V | 3相4线，380v THREE-PHASE FOUR- WIRE,380V | 3相4线，380v THREE-PHASE FOUR- WIRE,380v |
| 气源要求 Air pressure request | 0.6MPa，无油无水压缩空气 0.6MP,compressed air without oil and water | 0.6MPa，无油无水压缩空气 0.6MP,compressed air without oil and water | 0.6MPa，无油无水压缩空气 0.6MP,compressed air without oil and water |
| 装机重量 Unit weight | 600KG | 800KG | 1000KG |
| 外形尺寸(mm) outiine Dimension(mm) | A:2198，B:1348, c: 1060，D: 1390 | A:2807，B:1423, c:1180，D:1510 | :2575，B:2215, c: 1016，D: 1466 |
| 排放浓度(mg/M) Emission concentration | <20 | <20 | <20 |
